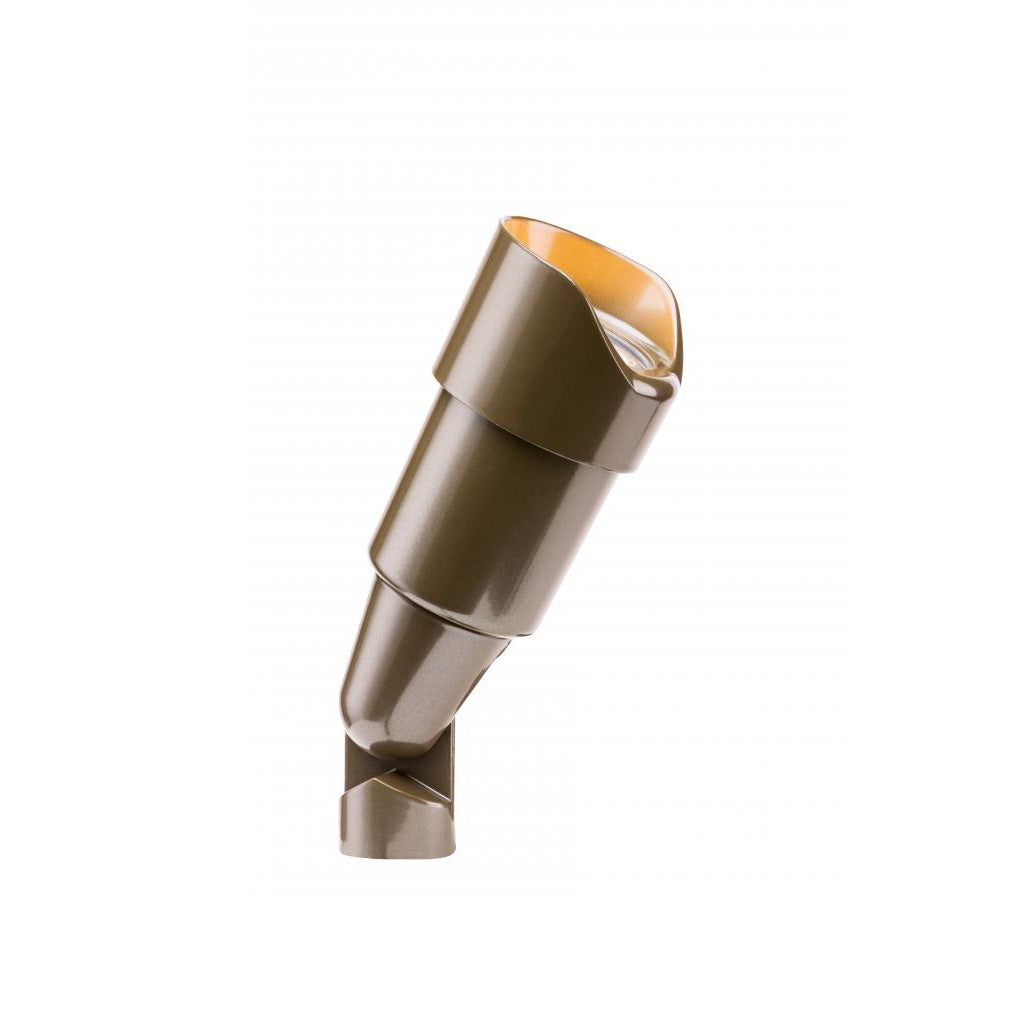

FX Luminaire RS-NL-BZ • FX RS Series Uplight, Bronze Metallic • No Lamp • Clear Lens

FXL RS Series Uplight Details & Information

Socket: MR16 GU5.3 with ceramic base and stainless steel retaining clips.
Wiring: 18 AWG, rated for 220°F (105°C) with a length of 10 feet.
Power: Requires a remote transformer for 10–15 VAC/VDC operation.
Optics: Features a stainless steel spring to secure the lamp, with options for glare reduction using a Recessor Ring and MR-16 sized accessories.
Surge Protection: Rated for up to 0.58 kV.
Housing: Die-cast construction for a single MR-16 lamp.
Lens: Tempered, low-iron glass for shock resistance and thermal tolerance.
Control: ZD option for zoning and dimming with Luxor technology, requiring a Luxor controller.
Operating Temperature: Suitable for temperatures from 0°F to 140°F (-18°C to 60°C).
Weight: 2.6 lbs. (1.2 kg).
Sustainability: Incorporates recycled materials; high energy efficiency and durability.
Installation: Designed for upward installation only, requiring waterproof connectors.
Warranty: Offers a 10-year warranty on the fixture
Manufacturing: Assembled in Mexico with the lamp produced in China, certified under ISO 9001:2015.

Listings include UL, CE, RoHS, and an IP65 rating for water and dust protection.
