FX Luminaire

SKU:L-FXL-PBZDCFB

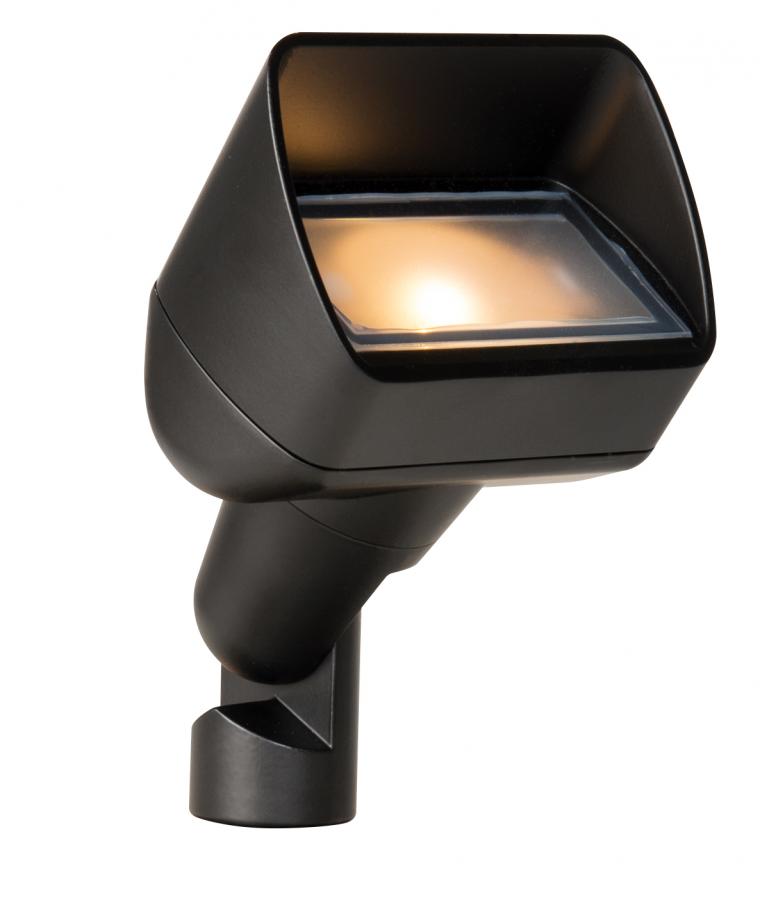

FX Luminaire PBZDCFB - PB Wall Wash with ZDC [Color Control] - Black

FX Luminaire PBZDCFB - PB Wall Wash with ZDC [Color Control] - Black

Wall Wash / Flood Light

Regular price $360.99
Regular price Sale price $360.99
Sale Sold out
Shipping calculated at checkout.

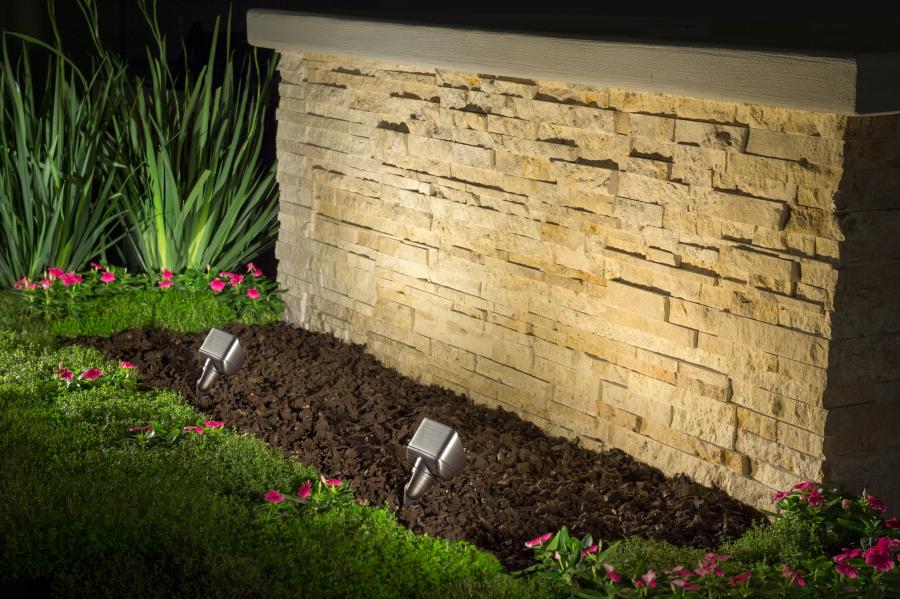

The FX Luminaire PB-ZDC-FB is a heavy-duty brass wall wash light engineered for broad, seamless light coverage on wide architectural surfaces, retaining walls, and dense foliage.

Key Features

  • ZDC Technology Integration: Supports zoning, smooth dimming, and over 30,000 color options when paired with the FX Luminaire Luxor System.
  • Solid Brass Construction: Made with durable brass and finished in Flat Black (FB) for corrosion resistance in harsh outdoor environments.
  • Wide-Flood Optical Design: Delivers an ultra-wide wash beam pattern to illuminate large surfaces without hot spots.
  • Energy-Efficient LED Engine: Engineered for long-life performance with reduced power draw on low-voltage transformers.
  • All-Weather Seal: Double O-ring seals prevent moisture intrusion, ensuring reliable operation in all seasons.

Equipped with Luxor ZDC technology, it offers zone control, dimming, and full RGBW color-changing capabilities from a single fixture.

Comes with a tempered frosted glass lens with shock resistance and high tolerance for thermal expansion and stress. Plus Zoning, Dimming and Color option!

Includes fixture, ZDC LED board (1), 10' (3 m) lead wire*, lock ring (1), and spike (1).

See PB Spec Sheet

Product Specifications
Bulb/Lamp: Integrated ZDC LED
Watts: 6W
Color Temp:
Lamp Life: 72,000 hrs
Optimal Voltage: 15V
Beam Spread:
Lumens: 125-255 lm
CRI: 83
Product Model: PBZDCFB
Color/Finish: Flat Black
Manufacturer: FX Luminaire
View full details

FX Luminaire Landscape Lighting Integrated Fixtures

What does integrated mean?

Simply put: It means the light source is not an easy to replace light bulb. However with many FX Luminaire fixtures, there IS a board that is replaceable! Always double check literature from the manufacture before purchasing to know if the fixture contains these boards.

Here a few basic type of integrated options offered by FX Luminaire:

1LED, 3LED, 6LED or 9LED Options (Standard / Fixed CCT) - Delivers efficient, focused illumination with a fixed color temperature (such as 2700K or 3900K) and field-changeable optical lenses.

Best For: Standard landscape lighting layouts requiring reliable, high-efficiency accent or pathway lighting without complex digital grouping requirements.

ZD Option (Zoning & Dimming) - Fully compatible with the Luxor digital control system to provide wireless zoning and dimming capabilities.
Group fixtures into up to 250 unique zones and adjust brightness smoothly in 1% increments (0–100%) directly from the controller.

ZDC Option (Zoning, Dimming, & Color) -
Advanced RGBW board offering complete architectural lighting control with 30,000 custom color combinations.
Seamlessly integrates zoning, dimming, and live color customization for holiday themes, seasonal accents, and dynamic architectural highlights.
