FX Luminaire
SKU:FXL-PBZD3LEDBZ

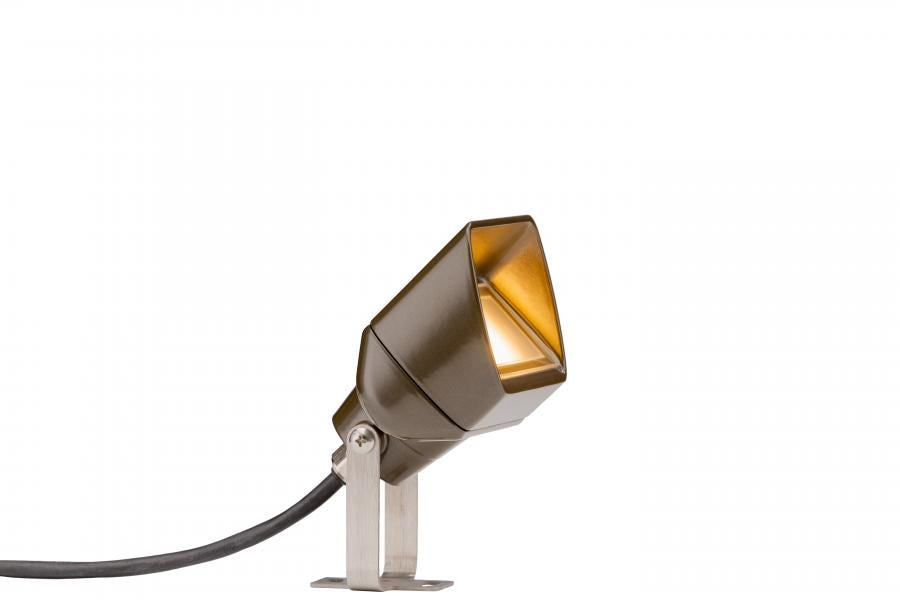

FX Luminaire PB Zone/Dim 3LED Wall Wash, Bronze Metallic, PBZD3LEDBZ
FX Luminaire PB Zone/Dim 3LED Wall Wash, Bronze Metallic, PBZD3LEDBZ
Wall Wash with Zoning & Dimming
Couldn't load pickup availability

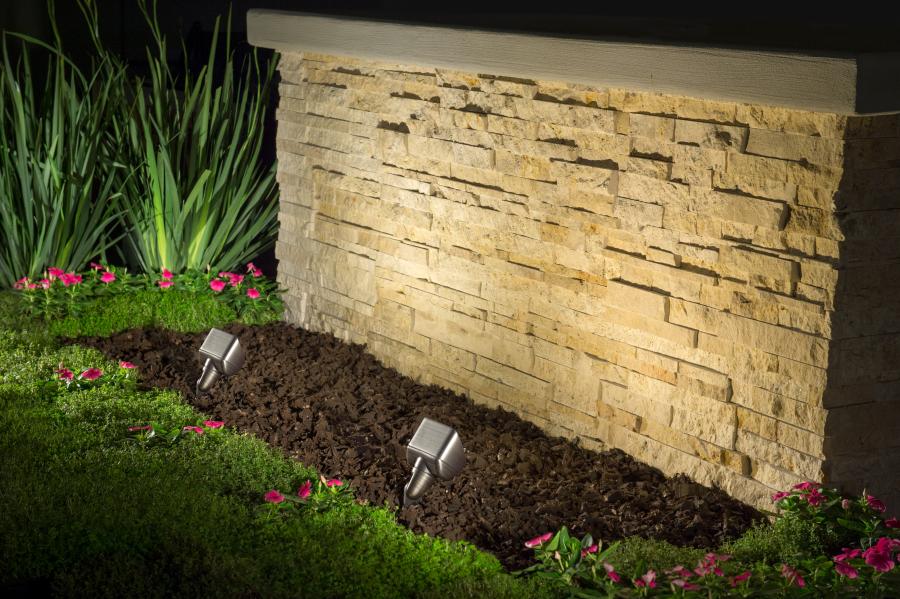

The PB ZD (zoning and dimming) series of fixtures are compact and durable LED wall wash lights designed to illuminate larger structures and spaces with a broad, uniform light. Despite its small size, its wide-angle beam and powerful output make it an ideal choice for a variety of applications.

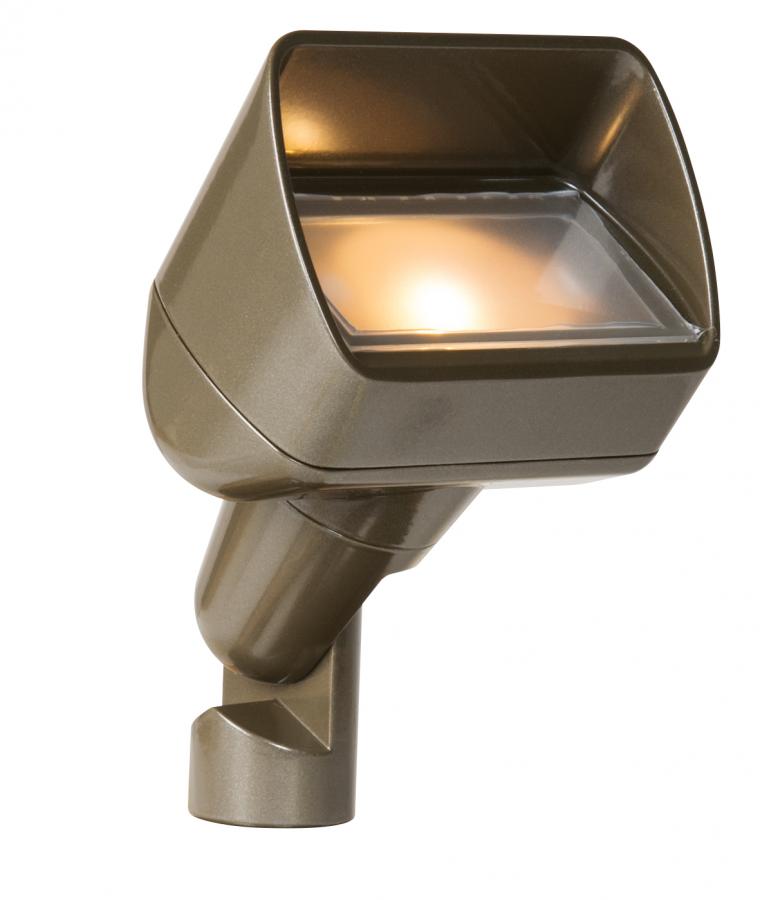

Comes with a tempered frosted glass lens with shock resistance and high tolerance for thermal expansion and stress.
Warm white 2700k
265lm
4W
4.4VA
3LED
84 CRI
72,000 hours Lamp Life
Zone and Dim with luxor and Phase Dimmable
Includes fixture, specified LED board (1), 10' (3 m) lead wire*, lock ring (1), and spike (1).
2.4lbs • 10 yr warranty
Other Key Features of the PB Series of Wall Wash Fixtures from FX:
Powerful Illumination: A wide-angle beam allows you to light larger surfaces and structures, making it versatile for many applications.
Durable Construction: Built with a solid die-cast aluminum or brass body to withstand the elements.
Integrated Technology: Features integrated Lumileds® LEDs and ProAim™ adjustability for precise aiming.
Advanced Control: Compatible with Luxor® technology and is both phase and PWM dimmable, giving you flexible control over your lighting design.
Multiple Options: Available in one or three LED configurations, including ZDC options, to suit your specific lighting needs.
Low Voltage: Operates on a safe 10-15V input voltage.
Product Specifications | |
---|---|
Bulb/Lamp: | Integrated LED |
Watts: | 4W |
Color Temp: | 2700K |
Lamp Life: | 72,000 hrs |
Optimal Voltage: | 12V |
Beam Spread: | |
Lumens: | 265 lm |
CRI: | 84 |
Product Model: | PB-ZD-3LED-BZ |
Color/Finish: | Bronze Metallic |
Manufacturer: | FX Luminaire |
