FX Luminaire

SKU:L-FXL-PB3LEDSB

FX Luminaire PB 3LED Wall Wash in Sedona Brown, Zone w/ Luxor

FX Luminaire PB 3LED Wall Wash in Sedona Brown, Zone w/ Luxor

Integrated Wall Wash

Regular price $279.10
Regular price Sale price $279.10
Sale Sold out
Shipping calculated at checkout.

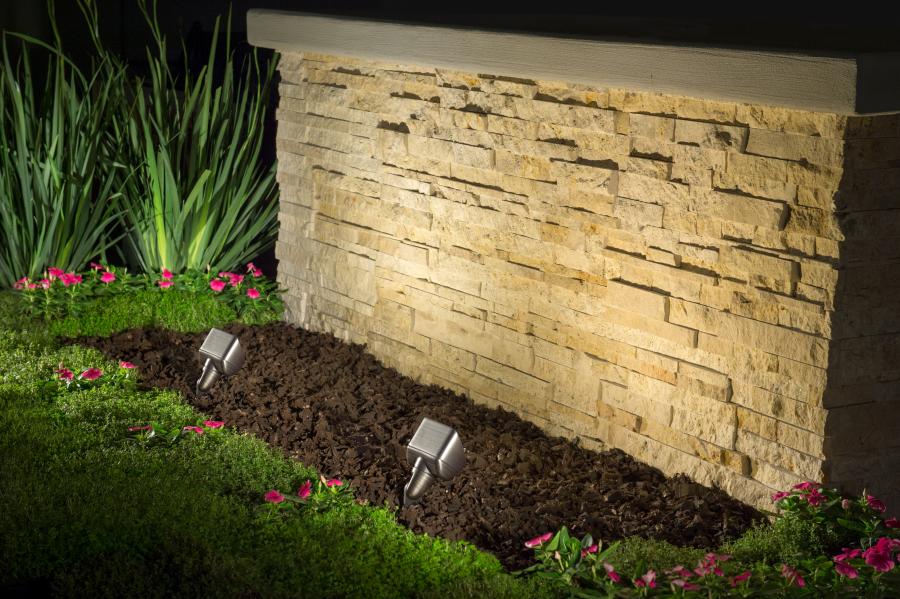

The PB line of  fixtures from FX Luminaire are compact and durable LED wall wash lights designed to illuminate larger structures and spaces with a broad, uniform light. Despite its small size, its wide-angle beam and powerful output make it an ideal choice for a variety of applications.
Comes with a tempered frosted glass lens with shock resistance and high tolerance for thermal expansion and stress.

Key Features of the PB Wall Wash / Flood Light:
Powerful Illumination: A wide-angle beam allows you to light larger surfaces and structures, making it versatile for many applications.
Durable Construction: Built with a solid die-cast aluminum or brass body to withstand the elements.
Integrated Technology: Features integrated Lumileds® LEDs and ProAim™ adjustability for precise aiming.
Advanced Control: Compatible with Luxor® technology and is both phase and PWM dimmable, giving you flexible control over your lighting design.
Multiple Options: Available in one or three LED configurations, including ZDC options, to suit your specific lighting needs.
Low Voltage: Operates on a safe 10-15V input voltage.

Product Specifications
Bulb/Lamp: Integrated LED
Watts: 4W
Color Temp: 2700K
Lamp Life: 72,000 hrs
Optimal Voltage: 12V
Beam Spread:
Lumens: 265 lm
CRI: 84
Product Model: PB-3LED-SB
Color/Finish: Sedona Brown Finish
Manufacturer: FX Luminaire
View full details

FX Luminaire Landscape Lighting Integrated Fixtures

What does integrated mean?

Simply put: It means the light source is not an easy to replace light bulb. However with many FX Luminaire fixtures, there IS a board that is replaceable! Always double check literature from the manufacture before purchasing to know if the fixture contains these boards.

Here a few basic type of integrated options offered by FX Luminaire:

1LED, 3LED, 6LED or 9LED Options (Standard / Fixed CCT) - Delivers efficient, focused illumination with a fixed color temperature (such as 2700K or 3900K) and field-changeable optical lenses.

Best For: Standard landscape lighting layouts requiring reliable, high-efficiency accent or pathway lighting without complex digital grouping requirements.

ZD Option (Zoning & Dimming) - Fully compatible with the Luxor digital control system to provide wireless zoning and dimming capabilities.
Group fixtures into up to 250 unique zones and adjust brightness smoothly in 1% increments (0–100%) directly from the controller.

ZDC Option (Zoning, Dimming, & Color) -
Advanced RGBW board offering complete architectural lighting control with 30,000 custom color combinations.
Seamlessly integrates zoning, dimming, and live color customization for holiday themes, seasonal accents, and dynamic architectural highlights.
