FX Luminaire

SKU:L-FXL-NP6LEDBZ

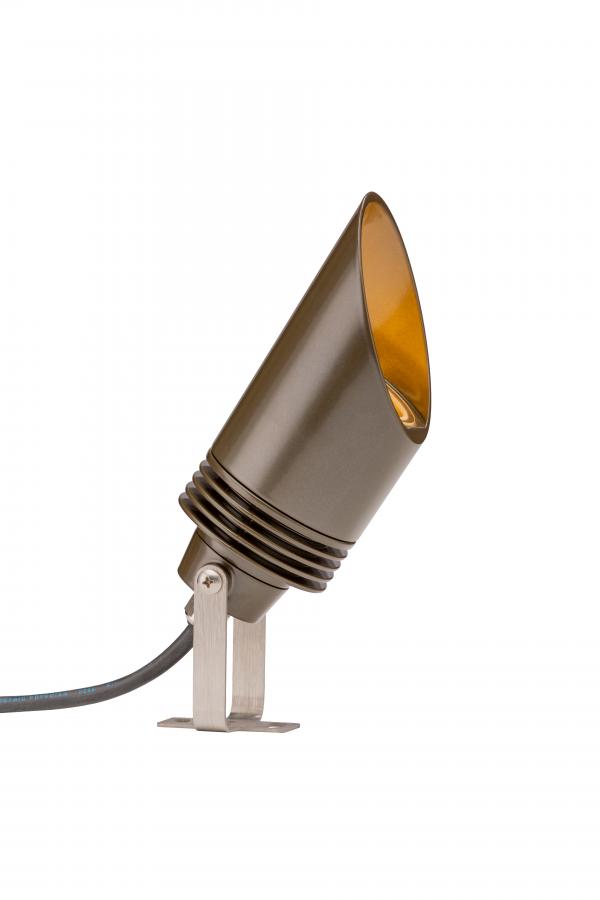

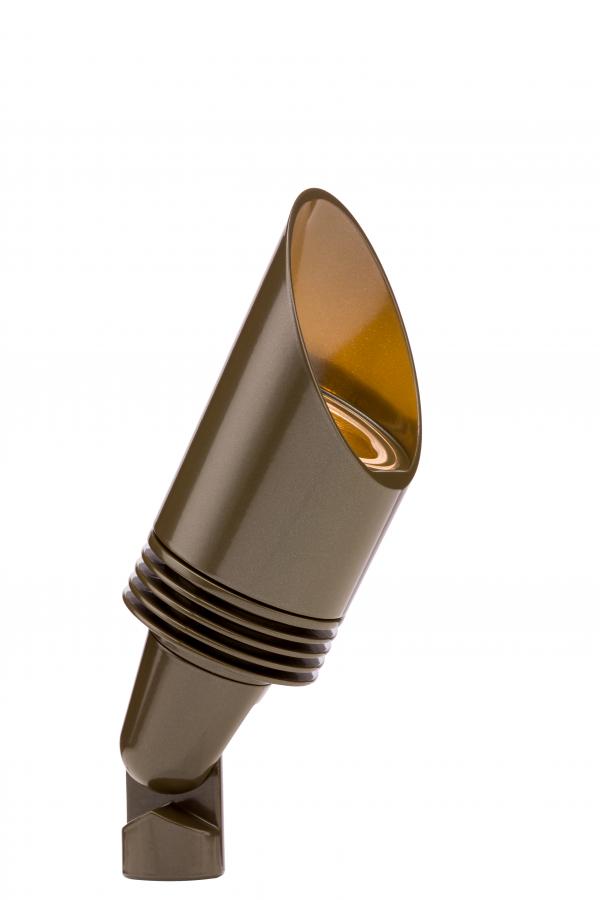

FX Luminaire NP-6LED-BZ Uplight, 7W 510lm 2700K, Bronze Metallic

FX Luminaire NP-6LED-BZ Uplight, 7W 510lm 2700K, Bronze Metallic

Uplight

Regular price $210.99
Regular price $286.86 Sale price $210.99
Sale Sold out
Shipping calculated at checkout.

The NP is FX Luminaire's most versatile LED Up Light, featuring a durable die-cast aluminum body with a two-layer marine-grade finish, integrated Lumileds LEDs, and compatibility with Luxor technology, making it suitable for all your up-lighting needs.


Key Specs of the FXL NP 6LED Accent:


510lm, 7.7W, 9.3VA, 6LED, 35° beam angle, 83 CRI, 72,000 hour lamp life, 10-15VAC Voltage Range, Phase Dimmable or via Luxor, 10 yr limited warranty, 1.9lbs

Includes fixture, specified LED board (1), 10' (3 m) lead wire*, lock ring (1), spike (1), and beam angle lenses.

The FX Luminaire NP uplight is a versatile and durable LED fixture designed for a wide range of up-lighting applications. Constructed from die-cast aluminum with a marine-grade finish, it features integrated Lumileds LEDs with adjustable beam angles. It is also compatible with Luxor technology, allowing for advanced zoning, dimming, and color control.

Product Specifications
Bulb/Lamp: Integrated LED
Watts: 7.7W
Color Temp: 2700K
Lamp Life: 72,000 hrs
Optimal Voltage: 12V
Beam Spread: 35°
Lumens: 510 lm
CRI: 83
Product Model: NP6LEDBZ
Color/Finish: Metallic Bronze
Manufacturer: FX Luminaire
View full details

FX Luminaire Landscape Lighting Integrated Fixtures

What does integrated mean?

Simply put: It means the light source is not an easy to replace light bulb. However with many FX Luminaire fixtures, there IS a board that is replaceable! Always double check literature from the manufacture before purchasing to know if the fixture contains these boards.

Here a few basic type of integrated options offered by FX Luminaire:

1LED, 3LED, 6LED or 9LED Options (Standard / Fixed CCT) - Delivers efficient, focused illumination with a fixed color temperature (such as 2700K or 3900K) and field-changeable optical lenses.

Best For: Standard landscape lighting layouts requiring reliable, high-efficiency accent or pathway lighting without complex digital grouping requirements.

ZD Option (Zoning & Dimming) - Fully compatible with the Luxor digital control system to provide wireless zoning and dimming capabilities.
Group fixtures into up to 250 unique zones and adjust brightness smoothly in 1% increments (0–100%) directly from the controller.

ZDC Option (Zoning, Dimming, & Color) -
Advanced RGBW board offering complete architectural lighting control with 30,000 custom color combinations.
Seamlessly integrates zoning, dimming, and live color customization for holiday themes, seasonal accents, and dynamic architectural highlights.
