FX Luminaire

SKU:L-FXL-MO3LEDSQFB

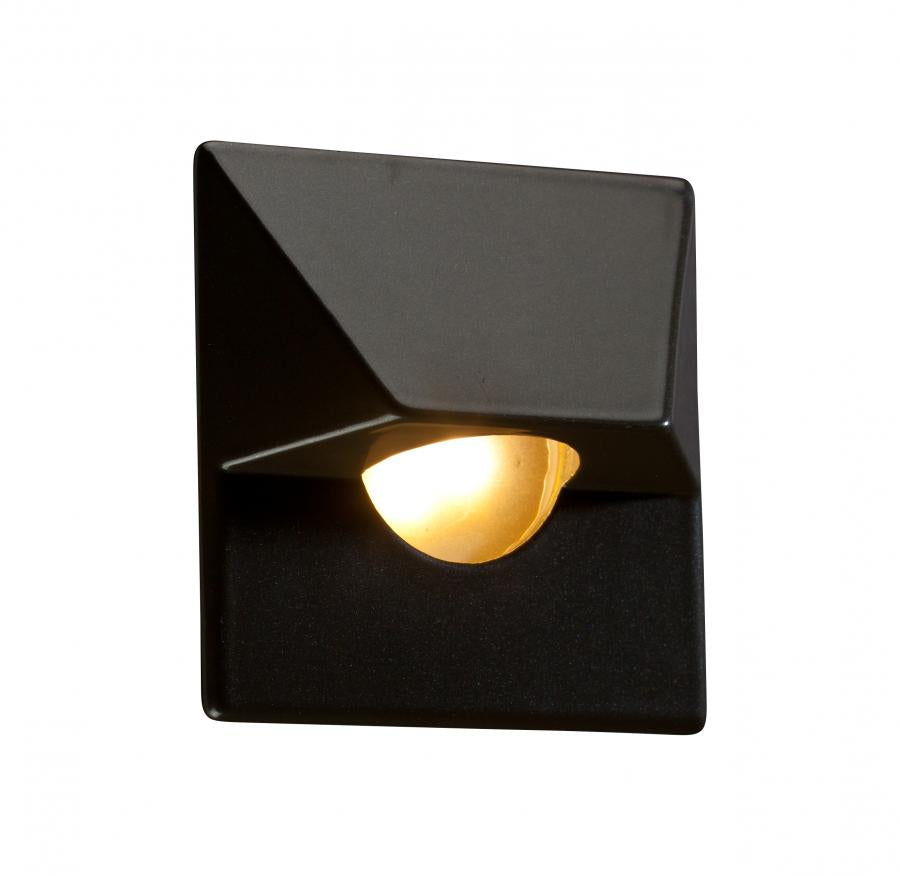

FX Luminaire MO 3LED Wall Light, Square in Flat Black

FX Luminaire MO 3LED Wall Light, Square in Flat Black

MO LED Wall Light

Regular price $331.88
Regular price Sale price $331.88
Sale Sold out
Shipping calculated at checkout.

The FX Luminaire MO 3LED Wall Light delivers the stylish appearance and soft, frosted glow of the PO fixture but in a larger size with three LEDs for significantly greater light output. This is the only 20-watt equivalent wall light that is fully compatible with the Luxor® control system. Its versatility is enhanced by four interchangeable faceplates and four color filters, allowing it to be used for various applications, including as a subtle walkway light or a recessed-style can light. The MO is available in both 1 or 3 LED models and multiple metal and powder coat finishes.

Quick Facts
It is constructed from a combination of die-cast brass and aluminum and is available in natural, powder-coated, or antique brass finishes. It utilizes Cree® integrated LEDs, includes color temperature filters for customization, and is compatible with Luxor® technology. The fixture is both phase and PWM dimmable and operates on a 10-15V input voltage.

Product Specifications
Bulb/Lamp: Integrated 3 LEDs
Watts: 4W
Color Temp: 2700K
Lamp Life: 50,000 hrs
Optimal Voltage: 12V
Beam Spread:
Lumens: 33-169lm
CRI: 82
Product Model: MO-ZD-3LED-SQ-FB
Color/Finish: Flat Black
Manufacturer: FX Luminaire
View full details

FX Luminaire Landscape Lighting Integrated Fixtures

What does integrated mean?

Simply put: It means the light source is not an easy to replace light bulb. However with many FX Luminaire fixtures, there IS a board that is replaceable! Always double check literature from the manufacture before purchasing to know if the fixture contains these boards.

Here a few basic type of integrated options offered by FX Luminaire:

1LED, 3LED, 6LED or 9LED Options (Standard / Fixed CCT) - Delivers efficient, focused illumination with a fixed color temperature (such as 2700K or 3900K) and field-changeable optical lenses.

Best For: Standard landscape lighting layouts requiring reliable, high-efficiency accent or pathway lighting without complex digital grouping requirements.

ZD Option (Zoning & Dimming) - Fully compatible with the Luxor digital control system to provide wireless zoning and dimming capabilities.
Group fixtures into up to 250 unique zones and adjust brightness smoothly in 1% increments (0–100%) directly from the controller.

ZDC Option (Zoning, Dimming, & Color) -
Advanced RGBW board offering complete architectural lighting control with 30,000 custom color combinations.
Seamlessly integrates zoning, dimming, and live color customization for holiday themes, seasonal accents, and dynamic architectural highlights.
