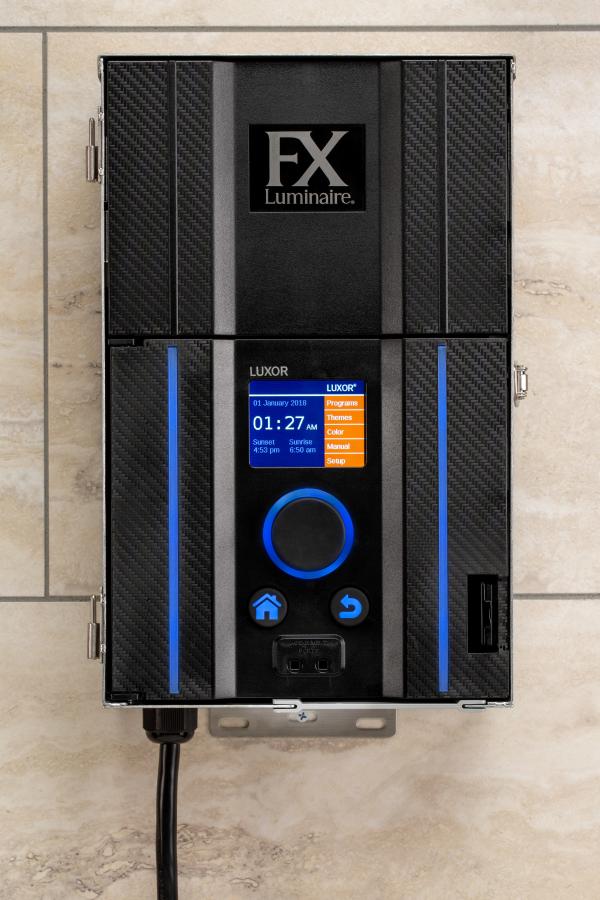

FX Luminaire LUX150M - LUXOR 2.0 Low Voltage Transformer, 150W, Matte Grey

The FX Luminaire Luxor 150W smart landscape lighting controller supports 250 independent zones, 0–100% dimming, and 30,000 color options. It operates on low voltage with a simple two-wire setup

Key Control & Programming

• Supports up to 250 independently addressable lighting zones on a single wire path.
• Features 0–100% intensity adjustment in 1% increments.

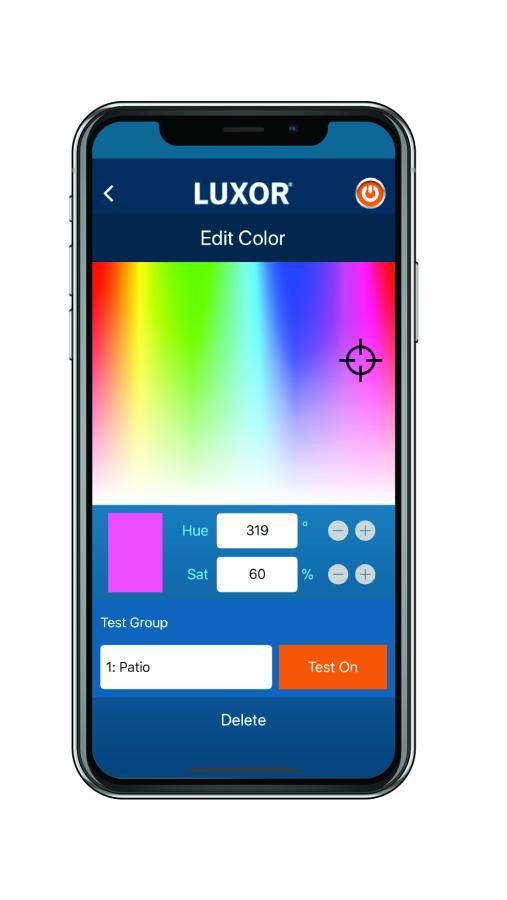

• Offers RGBW color control with up to 30,000 color combinations for compatible ZDC fixtures.
• Includes built-in astronomical timing that tracks local sunrise and sunset.

Power & Hardware Specs

• Total power capacity of 150 watts.
• Secondary output voltage of 14 VAC.

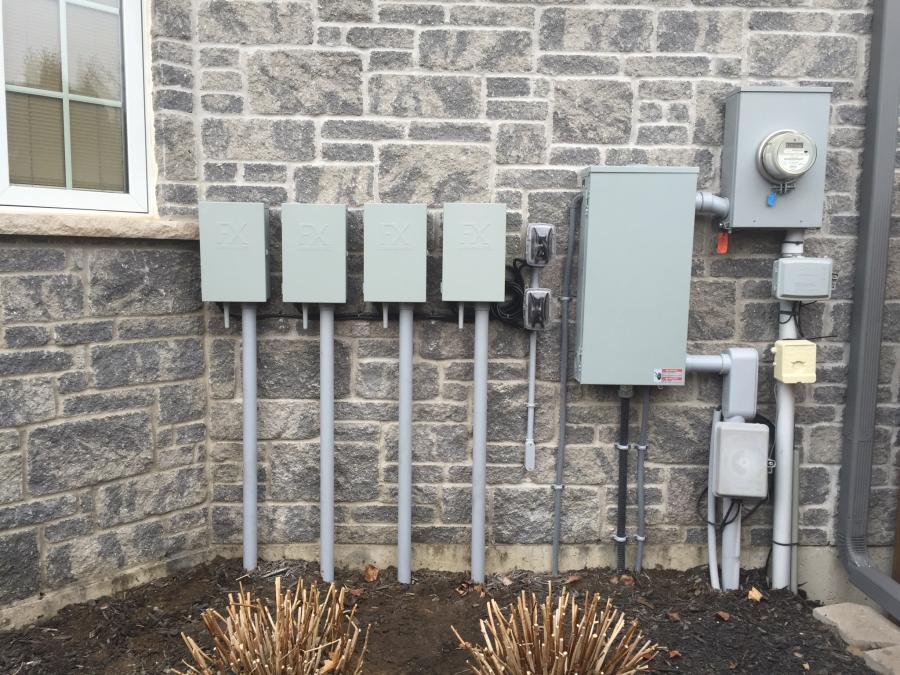

• Enclosure finishes available in durable stainless steel or matte gray powder-coated galvanized steel.
• Overload protection trips at 11 amps of continuous excess load.
• Backed by a 10-year limited manufacturer warranty.
