FX Luminaire

SKU:L-FXL-JB3LEDBZ

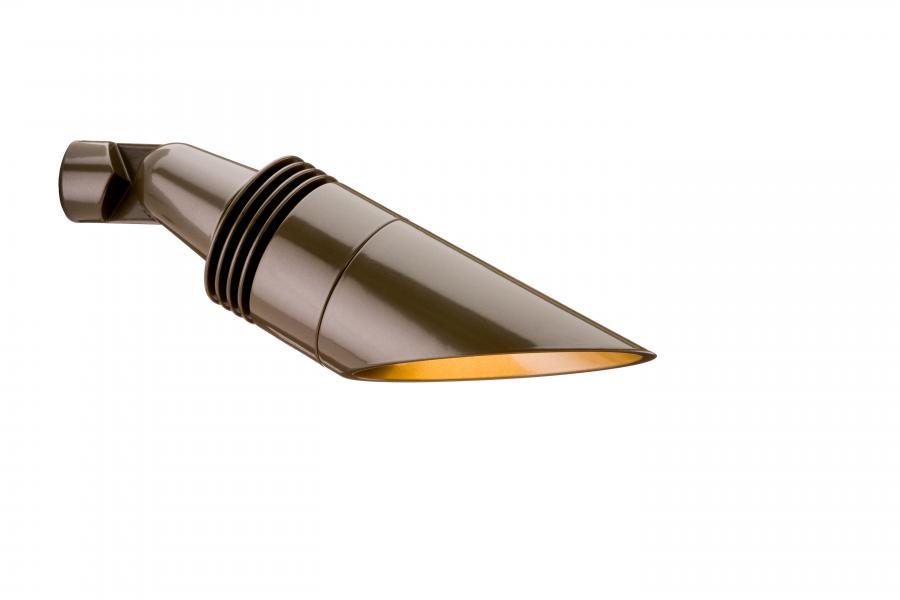

FX Luminaire JB3LEDBZ - JB Series Downlight with 3LED in Bronze, 2700K

FX Luminaire JB3LEDBZ - JB Series Downlight with 3LED in Bronze, 2700K

Downlight

Regular price $177.99
Regular price Sale price $177.99
Sale Sold out
Shipping calculated at checkout.

2700K, 3 LED, Zone with Luxor, On/Off, Phase Dimmable, 4.5VA, 4.4W, 246 lm

The JB is FX Luminaire’s original LED Down Light. The JB solves the problem of changing lamps in complicated areas by providing long-life LEDs.

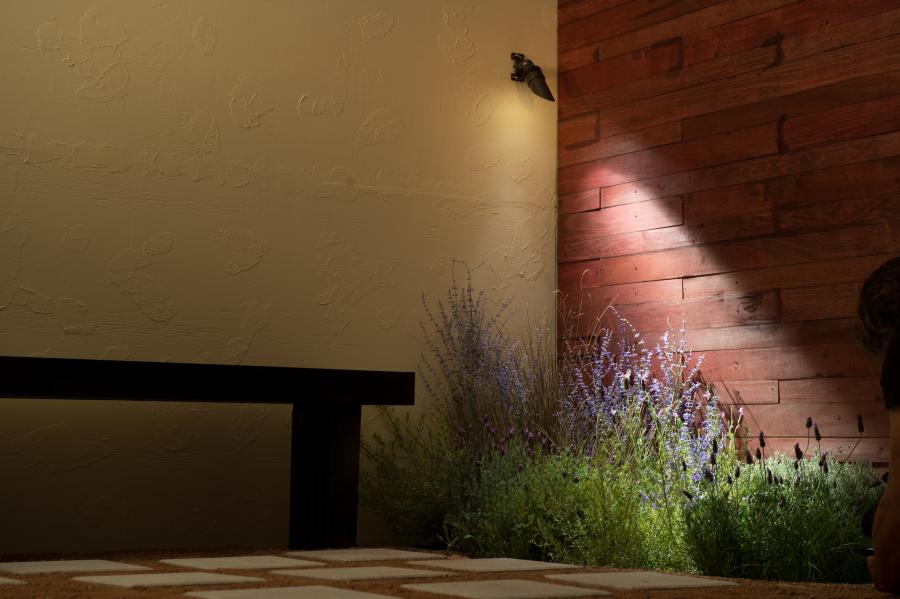

The pure color of the LED allows you to add the supplied blue lens to create a natural moonlight effect.

Includes angled shroud.


JB Downlight Key Features:

Die-cast aluminum
Two-layer marine-grade anodization and powder coat finish
Lumileds® Integrated LEDs
ProAim™ adjustability
Beam angle lenses
Compatible with Luxor® technology
Phase and PWM dimmable
Input voltage: 10-15V

Product Specifications
Bulb/Lamp: Integrated 3LED
Watts: 4W
Color Temp: 2700K
Lamp Life: 72,000 hrs
Optimal Voltage: 12V
Beam Spread: 60°
Lumens: 246 lumens
CRI: 82
Product Model: JB3LEDBZ
Color/Finish: Bronze Metallic
Manufacturer: FX Luminaire
View full details

FX Luminaire Landscape Lighting Integrated Fixtures

What does integrated mean?

Simply put: It means the light source is not an easy to replace light bulb. However with many FX Luminaire fixtures, there IS a board that is replaceable! Always double check literature from the manufacture before purchasing to know if the fixture contains these boards.

Here a few basic type of integrated options offered by FX Luminaire:

1LED, 3LED, 6LED or 9LED Options (Standard / Fixed CCT) - Delivers efficient, focused illumination with a fixed color temperature (such as 2700K or 3900K) and field-changeable optical lenses.

Best For: Standard landscape lighting layouts requiring reliable, high-efficiency accent or pathway lighting without complex digital grouping requirements.

ZD Option (Zoning & Dimming) - Fully compatible with the Luxor digital control system to provide wireless zoning and dimming capabilities.
Group fixtures into up to 250 unique zones and adjust brightness smoothly in 1% increments (0–100%) directly from the controller.

ZDC Option (Zoning, Dimming, & Color) -
Advanced RGBW board offering complete architectural lighting control with 30,000 custom color combinations.
Seamlessly integrates zoning, dimming, and live color customization for holiday themes, seasonal accents, and dynamic architectural highlights.
