FX Luminaire

SKU:L-FXL-FB3LEDDG

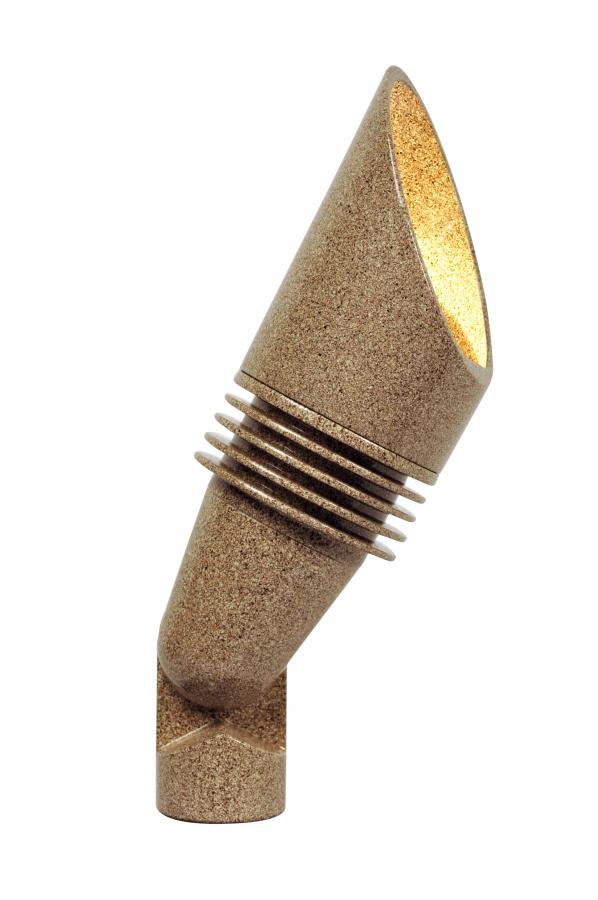

FX Luminaire FB3LEDDG - 3LED Up Light in Desert Granite, 4W, 282 lm

FX Luminaire FB3LEDDG - 3LED Up Light in Desert Granite, 4W, 282 lm

Up Light

Regular price $173.49
Regular price Sale price $173.49
Sale Sold out
Shipping calculated at checkout.

The FB fits nicely into smaller landscapes and tight spaces. Accommodating up to a 3 LED Board, the FB offers all the same Up Light benefits of the NP in a more compact package.

FB Uplight Quick Facts


Die-cast aluminum
Two-layer marine-grade anodization and powder coat finish
Cree® Integrated LEDs
ProAim™ adjustability
Color temperature filters
Compatible with Luxor® technology
Phase and PWM dimmable
Input voltage: 10-15V

3LED, 282 lm, 4W, 4.4VA, with Zoning, in a Desert Granite finish

Product Specifications
Bulb/Lamp: 3LED BOARD
Watts: 4W
Color Temp:
Lamp Life: 50,000 hrs
Optimal Voltage: 12V
Beam Spread:
Lumens: 282 lm
CRI:
Product Model: FB3LEDDG
Color/Finish: Desert Granite
Manufacturer: FX Luminaire
View full details

FX Luminaire Landscape Lighting Integrated Fixtures

What does integrated mean?

Simply put: It means the light source is not an easy to replace light bulb. However with many FX Luminaire fixtures, there IS a board that is replaceable! Always double check literature from the manufacture before purchasing to know if the fixture contains these boards.

Here a few basic type of integrated options offered by FX Luminaire:

1LED, 3LED, 6LED or 9LED Options (Standard / Fixed CCT) - Delivers efficient, focused illumination with a fixed color temperature (such as 2700K or 3900K) and field-changeable optical lenses.

Best For: Standard landscape lighting layouts requiring reliable, high-efficiency accent or pathway lighting without complex digital grouping requirements.

ZD Option (Zoning & Dimming) - Fully compatible with the Luxor digital control system to provide wireless zoning and dimming capabilities.
Group fixtures into up to 250 unique zones and adjust brightness smoothly in 1% increments (0–100%) directly from the controller.

ZDC Option (Zoning, Dimming, & Color) -
Advanced RGBW board offering complete architectural lighting control with 30,000 custom color combinations.
Seamlessly integrates zoning, dimming, and live color customization for holiday themes, seasonal accents, and dynamic architectural highlights.
